The EPMS-07 is a modular system for measuring and/or processing of bioelectrical signals in electrophysiology and the application of substances in pharmacology. The system is housed in a 19" rackmount cabinet (3U) containing a power supply and has room for up to 7 plug-in units depending on the width of a module. Modules can have a width of 1, 1.5, 2 or 3. The width of the modules in detail is given in the "Options" field for each module. The sum for one 19" cabinet must not exceed seven. The plug-in units are connected to mains by a bus at the rear panel.

Specifications

POWER REQUIREMENTS
115/230 V AC, 60/50 Hz, fuse 0.8/0.4 A, slow, 45-60 W (depending on the modules plugged in)

DIMENSIONS
19" rackmount cabinet, 3U high (1U = 1 3/4" = 44.45 mm).

The following modules are available:

• Intracellular Amplifier Modules
  • BRAMP-01M - Bridge Amplifier
• Extracellular Amplifier Modules
  • EXT-10C - Fast Amplifier
  • EXT 10-2F - Amplifier/Filter
  • EXT-08 - 8-Channel Amplifier
  • EXT-16 - 16-Channel System
• Clamp Amplifier Modules
  • SEC-03M - Clamp Amplifier
  • HVC-03M - High Voltage Clamp
• Multifunction Amplifier Modules
  • ELC-03M - Amplifier for loose-patch, extracellular and intracellular recordings
• Pre-Amplifier Modules
  • PA-01GX - Single channel amplifier
  • PA-2S - Dual channel amplifier
• Drug Application Modules
  • MVCS / MVCC - Iontophoretic Drug Ejection
  • PDES - Pneumatic Drug Ejection
  • HV-TR150 - Tracer Injection
• Voltammeter-Amperometer Modules

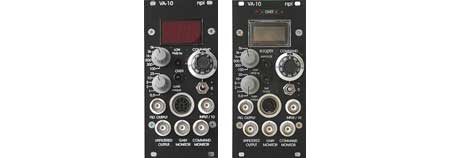

  • VA-10M
• Signal Processing/ Filter Modules
  • BF-48DGX - Low pass Bessel Filter with gain
  • LPBF-01GX - Low pass Bessel Filter with gain
  • DPA 2FX/FS - Single-Pole Filters
  • DI-01N - Differentiator/Integrator Module
  • INR-01-T - Envelope/Integrator Module
  • WD-01 - Window Discriminator Module
• Stimulus Isolator Modules
• ISO-STIM 01M - Stimulus Isolator
• Audio Modules
  • AUDIS-03M - Audio Monitor with THRESHOLD function
• Timer Modules
  • TMR-02M - Timer Module
• Penetration Modules
  • PEN-03 - Penetration Module
• Electrode Resistance Measurement Modules
  • RES-06 - Electrode Resistance Measurement Module
