Mightex Multi-Port Illuminator

Combining Wide-Field and Patterned Illumination

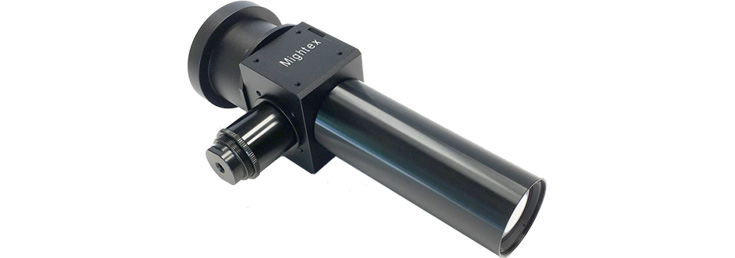

Mightex Multi-Port IlluminatorMulti-port illuminator (MPI)



  • One port accepts a standard 3 mm-core liquid lightguide to produce wide-field illumination
  • Customers can use their existing light source and light guide.
  • Science Products can also provide LED light sources, i.e. form Mightex.
  • The other port accepts Polygon to produce patterned illumination
  • Standard front tube should be removed from Polygon before inserting Polygon into Mightex Multi-Port Illuminator (MPI).
  • Both “E” and “G” models of Polygon are accepted. “D” model is currently not accepted.*
  • Standard-size dichroic in interchangeable filter cube
  • Optional excitation filters can be installed in filter cube.
  • Holds one (interchangeable) filter cube at a time.


Mightex Multi-Port Illuminator with Polygon-400 attached to a Microscope

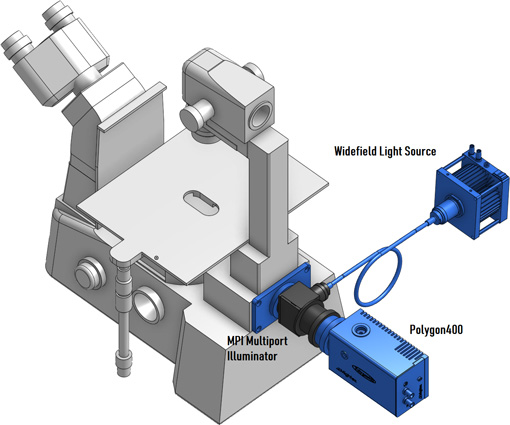

System-level drawing of a Polygon and widefield lightsource connected to the backport of an inverted microscope via MPI



Application Examples

  • Use on an inverted microscope where the back port is already occupied by a traditional epi-fluorescence illuminator, for customer who wants to keep the fluorescence imaging capability.
  • Use on an upright microscope not equipped with epi-fluorescence illuminator. MPI allows for the addition of both wide-field and patterned illumination capabilities onto the microscope.
  • Use on Mightex OASIS Macro/Micro/Implant systems. MPI provides additional flexibility in system configuration.


 *Older infinity-path Polygon models need to be converted to C-mount version first.
