The EPMS-07 is a modular system for measuring and/or processing of bioelectrical signals in electrophysiology and the application of substances in pharmacology.  The system is housed in a 19" rackmount cabinet (3U) containing a power supply and has room for up to 7 plug-in units depending on the width of a module.  Modules can have a width of 1, 1.5, 2 or 3.  The width of the modules in detail is given in the "Options" field for each module.  The sum for one 19" cabinet must not exceed seven.  The plug-in units are connected to mains by a bus at the rear panel.

Specifications

POWER REQUIREMENTS
115/230 V AC, 60/50 Hz, fuse 0.8/0.4 A, slow, 45-60 W (depending on the modules plugged in)

DIMENSIONS
19" rackmount cabinet, 3U high (1U = 1 3/4" = 44.45 mm).

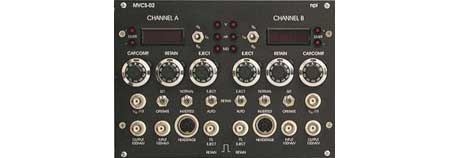

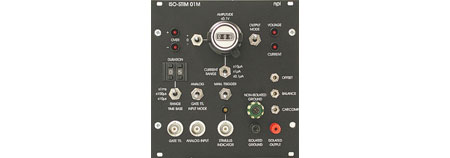

The following modules are available:
