Series 20 Stage Adapters

for Series 20 bath chambers (Warner)
Description

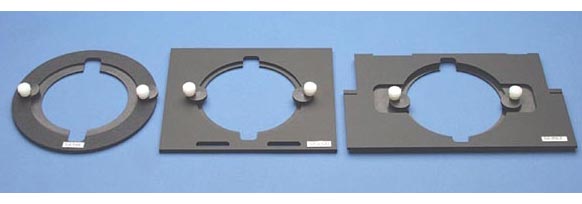

Stage Adapters are designed to allow the mounting of Warner imaging and recording products onto a microscope.  We have a wide variety of stage adapters to fit most commonly used microscope stages including stock stages from Nikon, Olympus, Zeiss, and Leica.  We also have stage adapters compatible with 3rd party stages from Burleigh, Prior & Ludl, and Marzhauser to name a few. Adapters are machined from high quality Delrin which provides good thermal isolation from the microscope stage. All platforms  rest upon a 38 mm lip which surrounds the central aperture. Platforms and bases are secured using two plastic button clamps.

Note to Zeiss Axiovert users: Series 20 Platforms fit directly into the Zeiss slide frame (Zeiss p/n 471719) which mounts on the Zeiss 211 × 230 Specimen Stage.  However, if a heater platform is used, the metal slide frame is not recommended since it will act as a thermal heat sink. Use stage adapter SA-20LZ for this heating application.

Selecting a Stage Adapter
Consult the table below to identify stage adapters compatible with your microscope stage. Generally speaking, the table lists dimensions that should match the cutout in your microscope stage.



Stage Adapter Lookup Table

Stage Manufacturer Adapter Dimensions Series 20 Stage Adapters Order Number Series 30 Stage Adapters Order Number
Nikon 10.8 cm diameter SA-NIK 64-0291 SA-30NIK 64-0322
9 × 13 cm SA-TS100 64-0340 call -
12.7 × 11 cm SA-20UU 64-0298 SA-30UU 64-0380
23.75 × 15.65 cm SA-20Ti 64-1744 SA-30Ti 64-1747
Olympus 10.3 × 8.89 cm SA-OLY 64-0294 call -
12.7 × 11 cm SA-20UU 64-0298 call -
11.0 cm diameter SA-OLY/2 64-0295 SA-30/OLY2 64-0325
Leica 16.5 × 10 cm SA-20LZ 64-0296 SA-30GALVZi 64-1456
14.99 × 14.99 cm SA-20L3P 64-0301 SA-30L3P 64-0328
9.66 cm diameter SA-20GALVO Z 64-0376 SA-30GALVOZ 64-0377
Zeiss 10.97 × 15.98 cm SA-20KZ 64-0297 SA-30KZ 64-0327
16.5 × 10 cm SA-20LZ 64-0296 SA-30LZ 64-0326
12.7 × 13 cm SA-20UUZ 64-0336 SA-30UUZ 64-0379
14.99 × 14.99 cm SA-20L3P 64-0301 call -
Prior & Ludl 16 × 11 cm SA-20PL 64-0299 SA-30PL 64-1748
16 × 11 cm SA-20PLI 64-0300 SA-30PLI 64-0329
17.78 × 11.76 cm SA-20PP 64-1746 SA-30PP 64-1745
Burleigh Gibraltar 11.0 cm diameter
(steel top stage)
SA-OLY/2 64-0295 call -
10.96 cm diameter SA-OLY/3 64-0386 call -
Märzhäuser 10.97 × 15.98 cm SA-20KZ 64-0297 call -
Scientifica 11.0 cm diameter SA-OLY/2 64-0295 SA-30/OLY2 64-0325

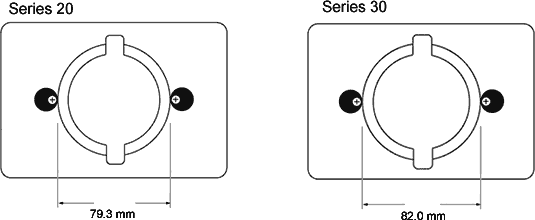

Outer dimensions of the adapters are the same on both Series 20 and Series 30 models,it is the inner diameter of the Series 30 adapters which is larger.
